Premium Restaurant BGM System with Zone Control for KEG Room, Abu Dhabi
-
Category:
Background Music (BGM) and Zone Control Systems
-
Client
The Keg Room, Abu Dhabi
The Challenge
The Solution
- The BGM system is divided into four independent zones:
- Section 1 & Section
- 2(Main Restaurant)
- Bar counter
- Section 3
- Washrooms

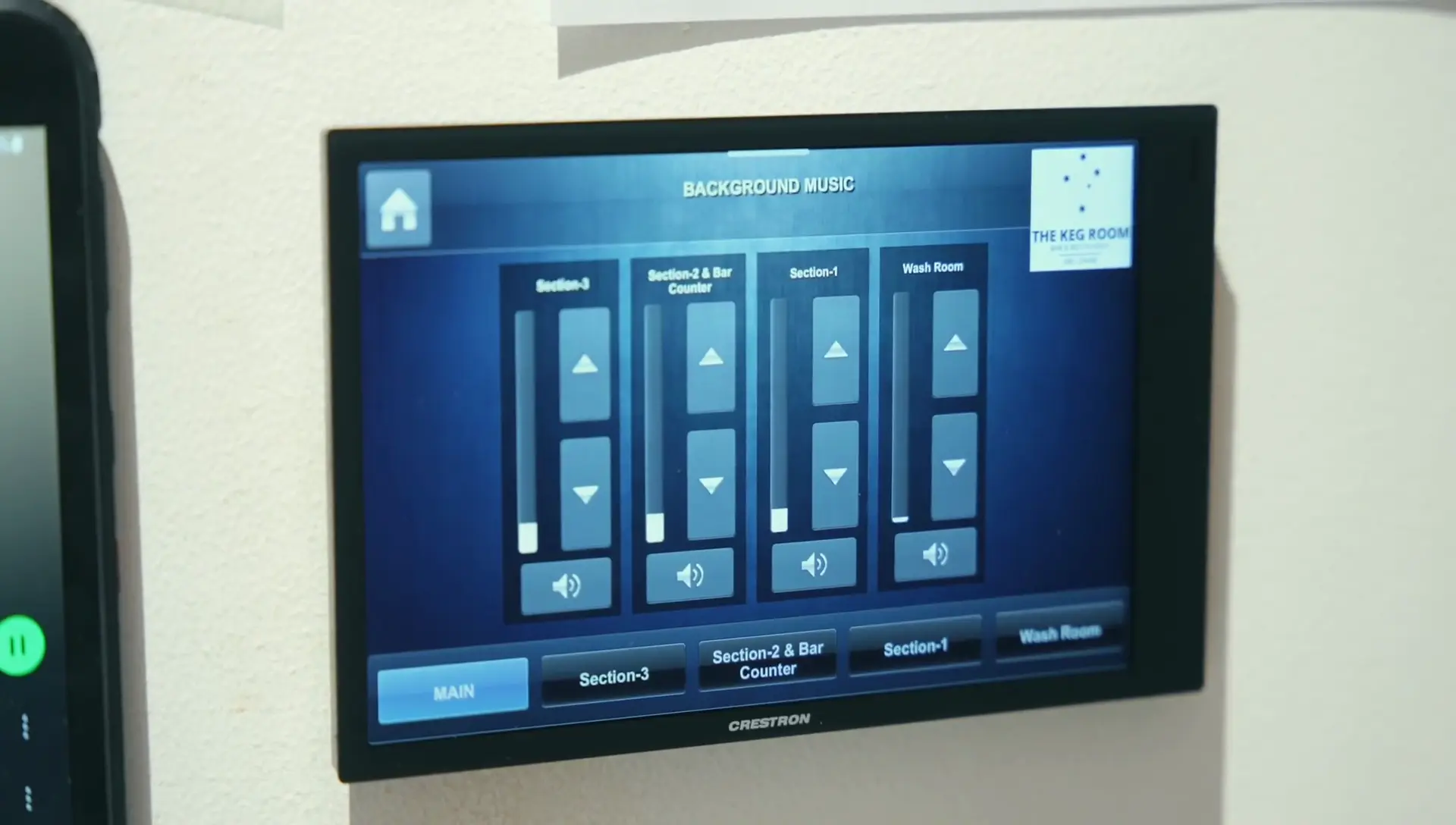

- Each zone can be independently controlled for volume and music operation through a Crestron TSW-770-B-S 7-inch wall-mounted touch panel.

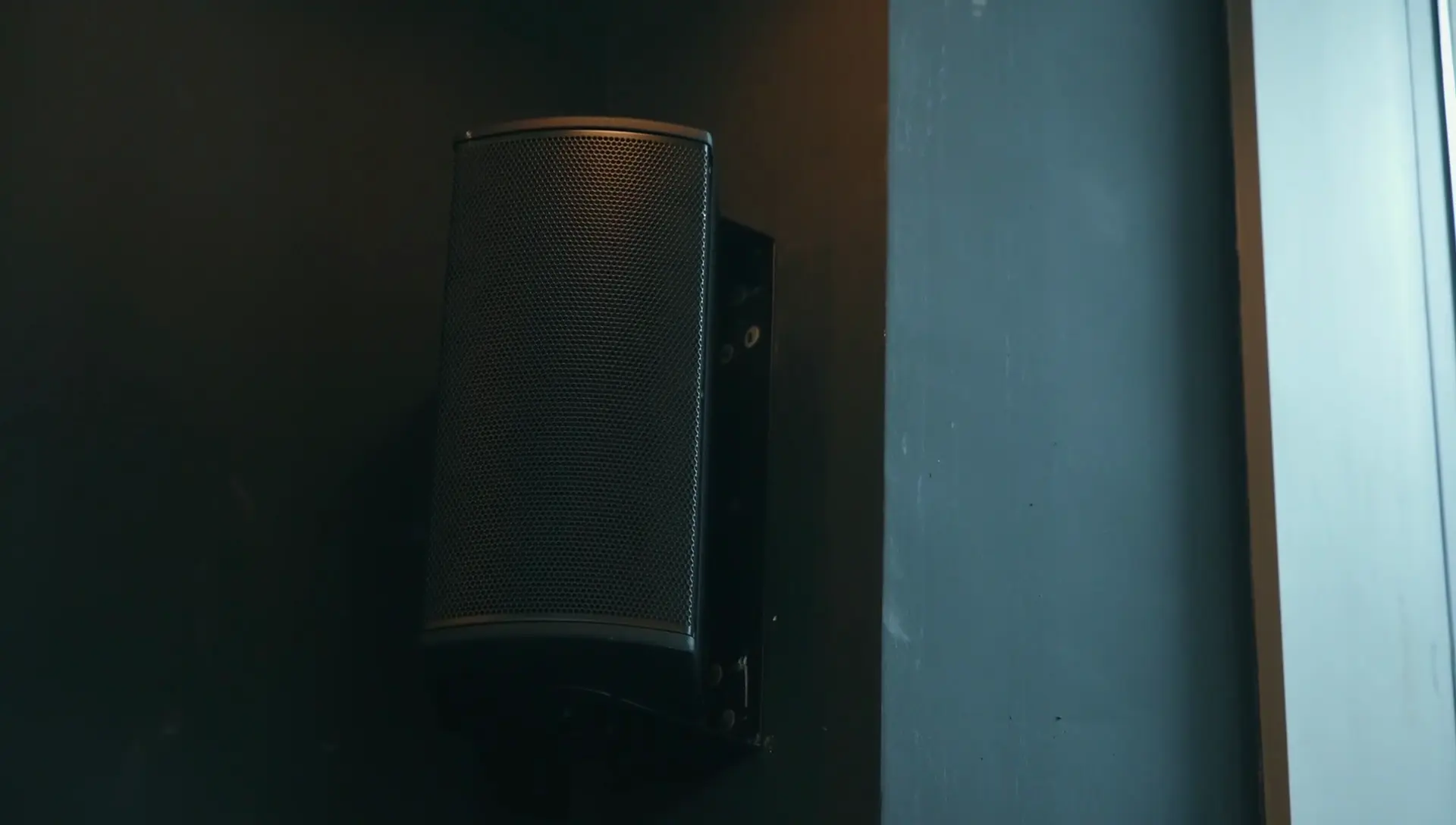

- High-performance wall-mounted loudspeakers (Bose AMU108-120) with 120° × 60° coverage and high output capability are used in the main dining areas to ensure wide and even sound distribution.

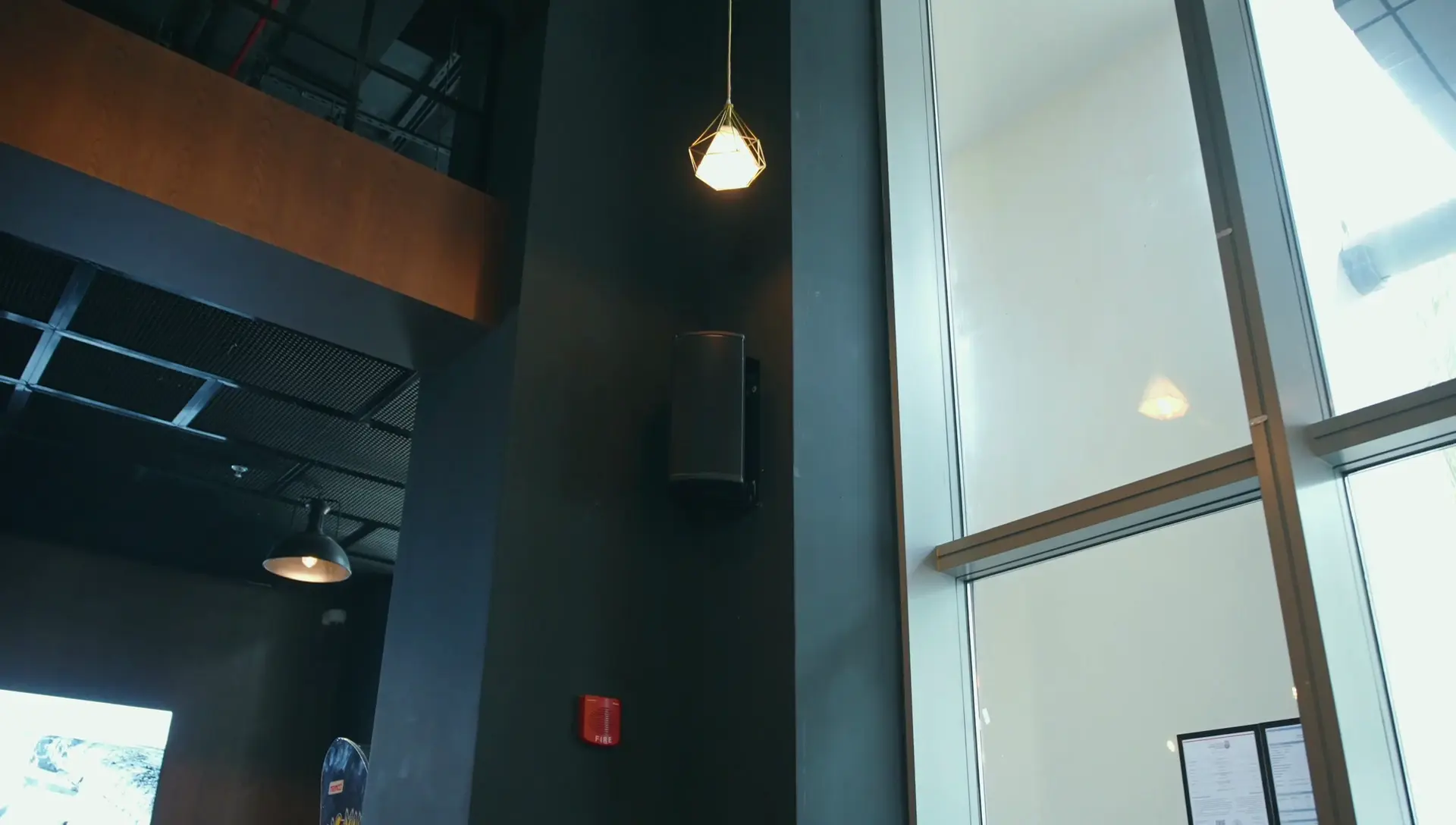

- Higher-output two-way wall-mounted loudspeakers (Bose AMU206 – 120° × 60°) with dual 6.5-inch woofers and compression driver are deployed in areas requiring stronger coverage and improved clarity.

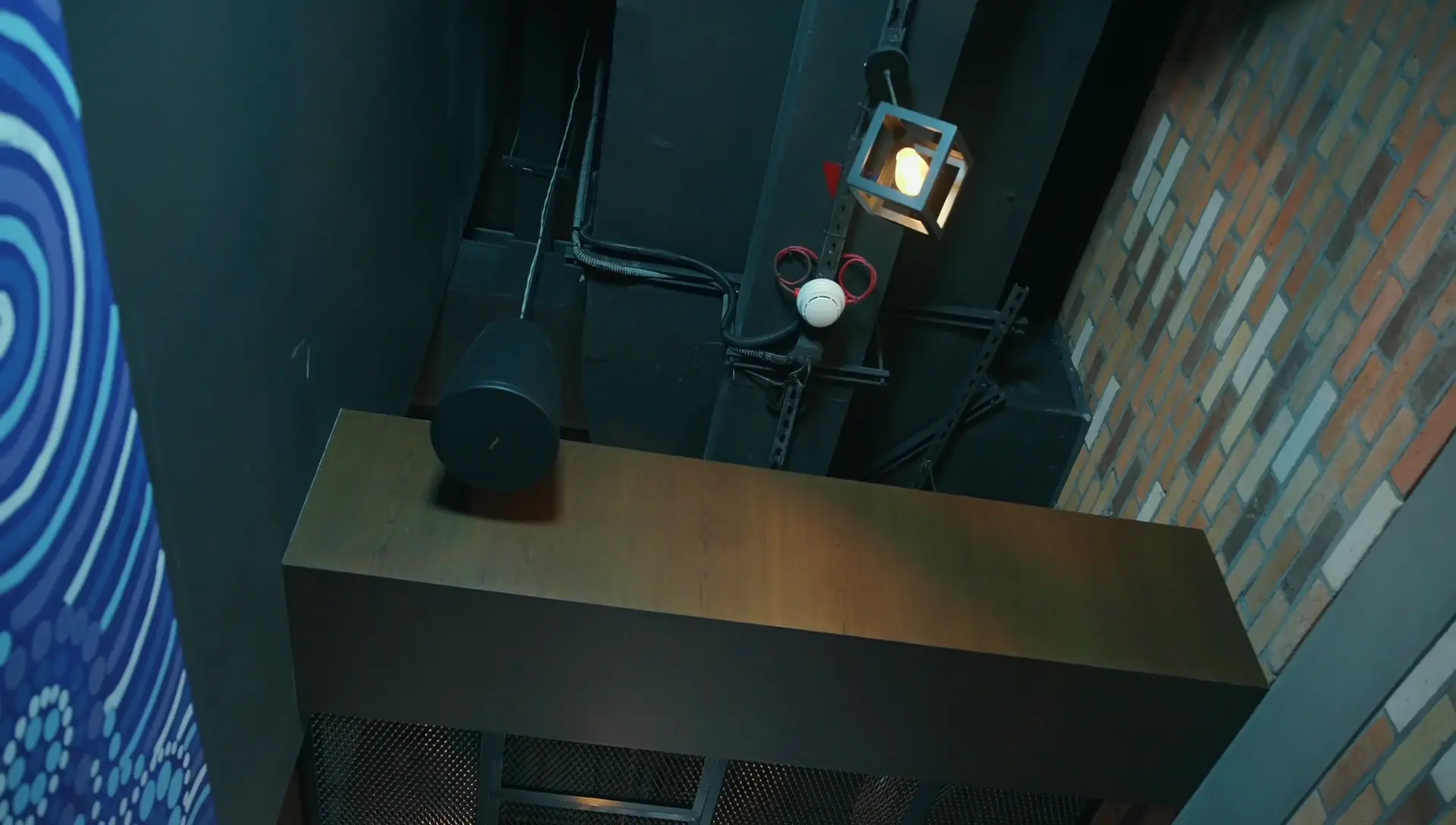

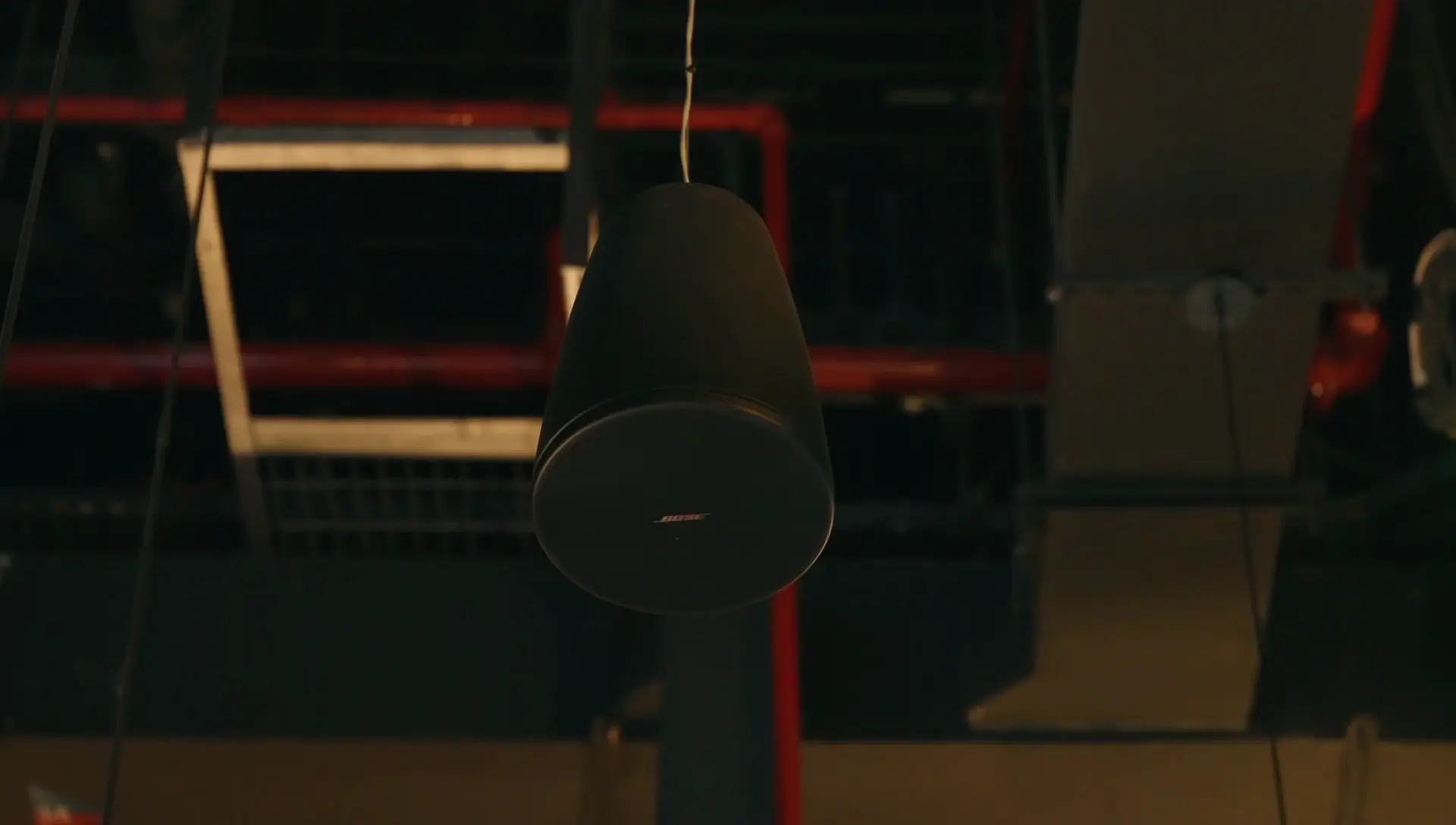

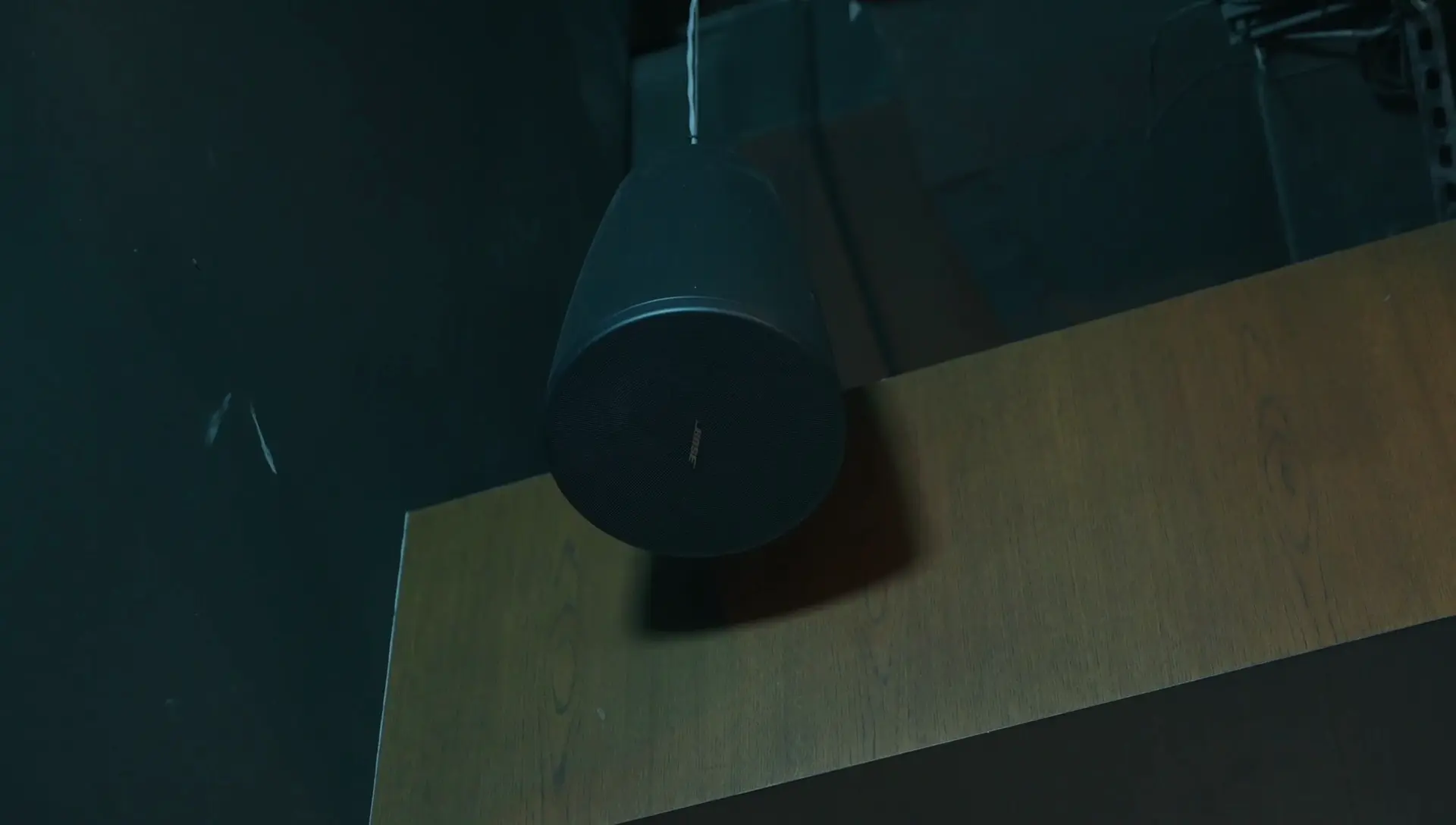

- Ceiling-mounted pendant loudspeakers (Bose DM5P) with coaxial two-way design are installed in the bar and washroom areas to suit ceiling height and architectural constraints.
- Centralized digital signal processing is provided using a Bose CSP428 audio processor for signal routing, level control and zone management.
- Power amplification is provided using Bose amplifiers ensuring adequate power and headroom for all four BGM zones.
- The overall BGM system control and user interface is managed through a Crestron RMC4 control processor and the 7-inch Crestron TSW-770-B-S touch panel, allowing staff to easily select zones and adjust volume levels.
- Network connectivity for the control system is provided via a D-Link PoE network switch with Wi-Fi access point.
- All loudspeakers are connected using Belden 14 AWG speaker cable, ensuring reliable signal transmission and low power loss.
At a glance
- Centralized Background Music (BGM) system for the entire restaurant
- Zone-based volume and music control via a 7-inch Crestron touch panel
- Combination of wall-mounted and ceiling-mounted Bose professional loudspeakers
- Seamless integration with existing loudspeakers at the venue
- Centralized audio processing and power amplification for stable operation
- Simple and user-friendly control interface for restaurant staff
- Scalable design to support future expansion and additional zones
The Result
The BGM system implemented at KEG Room Restaurant, Abu Dhabi successfully delivers clear and evenly distributed background music across main areas. The solution provides independent control of four audio zones covering Section 1 and Section 2, the bar counter, Section 3 and the washrooms, enabling the restaurant team to create the appropriate ambience for each space.
